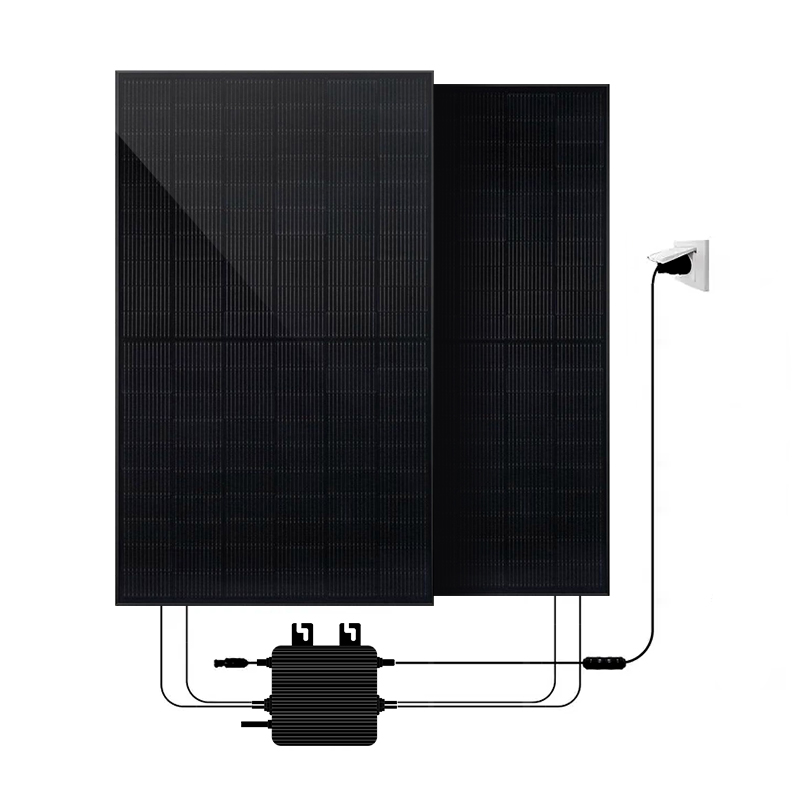

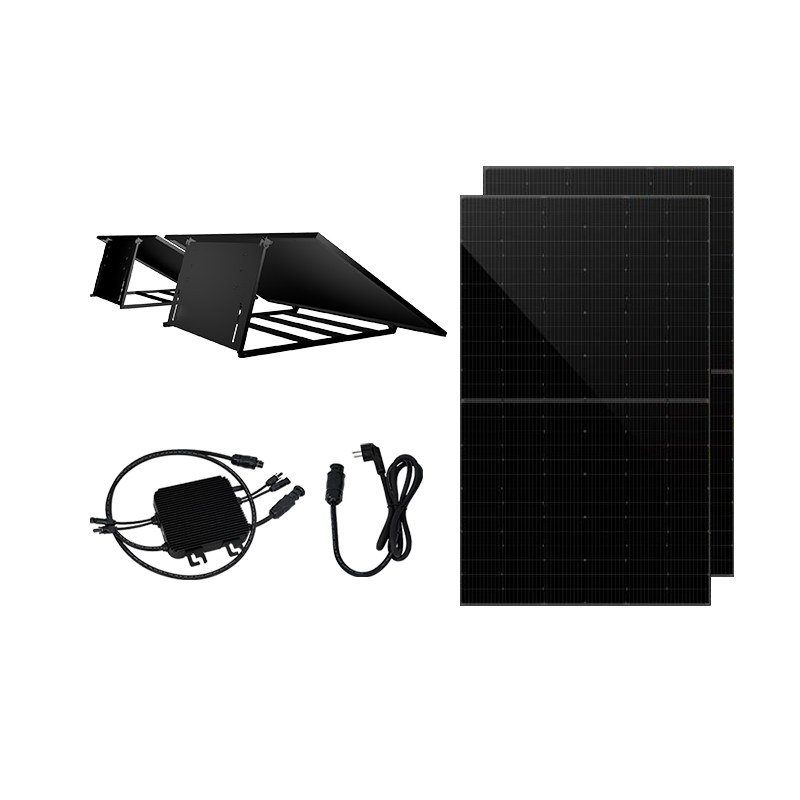

800W MAG Solar Kit with Microinverter Adjustable angle

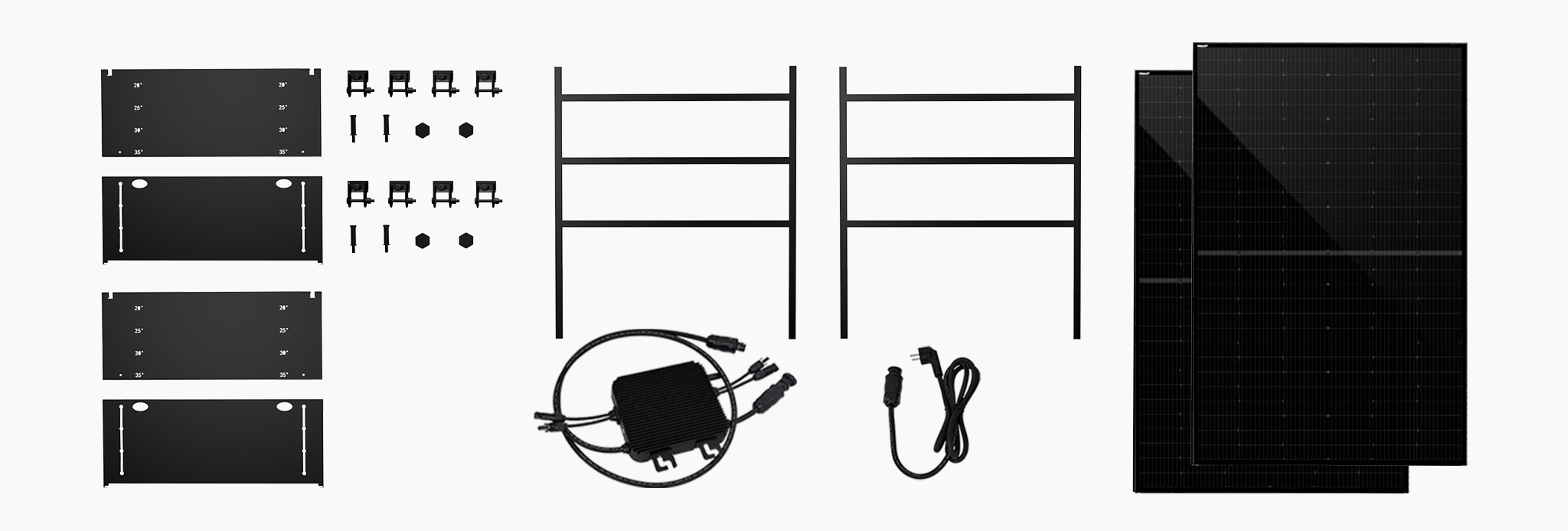

MAG Easy Solar Kit The One, a combination of solar panel, micro inverter and angle-adjustable bracket, breaks the pattern of traditional solar panel installation, enabling more energy, easier installations, lower costs and higher protection.
$0.00 USD
$0.00 USD
Quantity
Only 0 left
Volume Pricing
Quantity
Price
1+
$0.00 USD each
  • 【Premium Material, 22.5% Impressive Conversion Efficiency】Our 100W solar panel for camping is engineered with premium A+ monocrystalline silicon solar cells boasting an exceptional 22.5% conversion efficiency. This 100W solar panel portable is designed to harness maximum solar energy, ensuring optimal power generation even in challenging conditions.
  • 【Versatile Output and Wide Compatibility】100W foldable solar panel comes with a controller which is equipped with 5versatile interfaces to meet all your charging needs. The solar interface can seamlessly connect to our complimentary 10ft 5-in-1 solar cable (XT60/ANDERSON/DC5521/DC7909), ensuring compatibility with the majority of outdoor power station available in the market; 1*Black USB-A(5V/3A), 1*orange USB-A(12V/1.5A)&1*Type-C(20V/3A)can charge USB devices like phones, tablets,laptops etc
  • 【Long-lasting and IP65Waterproof】100W folding solar panel utilizes ETFE coating material, ensuring waterproof, dustproof, and long-lasting durability, capable of withstanding any harsh weather. Additionally, there's a pocket on the exterior of the camping solar panels where the controller is housed, ensuring worry-free outdoor activities even during sudden rain.  However, the control box is not waterproof, in order to prolong the lifespan of 100watt solar panel, please don't soak it into water
  • 【Smart Charging Technology】The USB-A and Type-C outputs of the controller are intelligently controlled by smart IC chips, automatically matches the optimal charging efficiency for your devices. It also provides overvoltage protection, overcurrent protection, short circuit protection, and overtemperature protection. The MC-4 output can provide reverse charging protection.
  • 【Please Note】Some portable power stations have a maximum input power limit. Even when using our 100W solar panel in optimal sunlight conditions, the power they can receive won't exceed their maximum input power limit, which could be lower than 100W. But this does not indicate that our solar panel has insufficient power output. Please carefully verify your power station model and check if it has a maximum input power limit before placing your order.


Technical Data

Model No. HE-40-BSK800-PB/PS
DC Power Data
Module  Power(Pnom) 800
Module Efficiency 21.51%
Power Tolerance 0/±5W
Temp. Coef. (Power) -0.35%/℃
Quantity of modules 2
AC Electrical Data
Max. Continous Output Power (W) 800
Max. Output Current (A) 3.6A (50Hz) / 3.5A (60Hz)
Nominal Output Voltage (V)* 180-275
Nominal Frequency (Hz)* 50/60
Power Factor >0.99
Output Current Harmonic Distortion <3%
Certification
Solar Module CE, TUV, INMETRO, IEC
Microinverter CE-LVD, CE-EMC, VDE 4105, VDE 0126, EN 50549
Environmental Data
Environmental Protection Rating IP67
Operating Ambient Temperature Range -40 ℃ to 65 ℃
Relative Humidity 0-100%
Max. Operating Altitude Without Derating [m] 2000
Mechanical Data
Weight [kg] 58kg
Dimensions (W×H×D mm)** 1736*1158*100 mm
Packing Configuration 26 pallets /40HQ , 143 pcs kit / 40HQ
Warranty 12 years

*    The AC voltage and frequency range may vary depending on specific country grid.

**  Dimension and Weight of The One Solar Kit will be changed according to the solar module used.

Ordering Information

Model No. Colour Description
HE-40-BSK800-PS Silver PV Module 800W, Microinverter, 2m End Cable
HE-40-BSK800-PB Black
